Collecting Data from Human Feedback for Generative AI

Human feedback is essential to the accuracy and continual improvement of generative AI systems. Incorporating human ranking of alternative model outputs into model reward functions is a key feature of the training
Collecting Data from Human Feedback for Generative AI

Introduction

Human feedback is essential to the accuracy and continual improvement of generative AI systems. Incorporating human ranking of alternative model outputs into model reward functions is a key feature of the training protocols for ChatGPT and other large language models. It has also recently shown significant promise in improving the alignment and prompt relevance of image generation systems.

Here's a sneak peek of the human feedback collection UI we'll be building in this walkthrough:

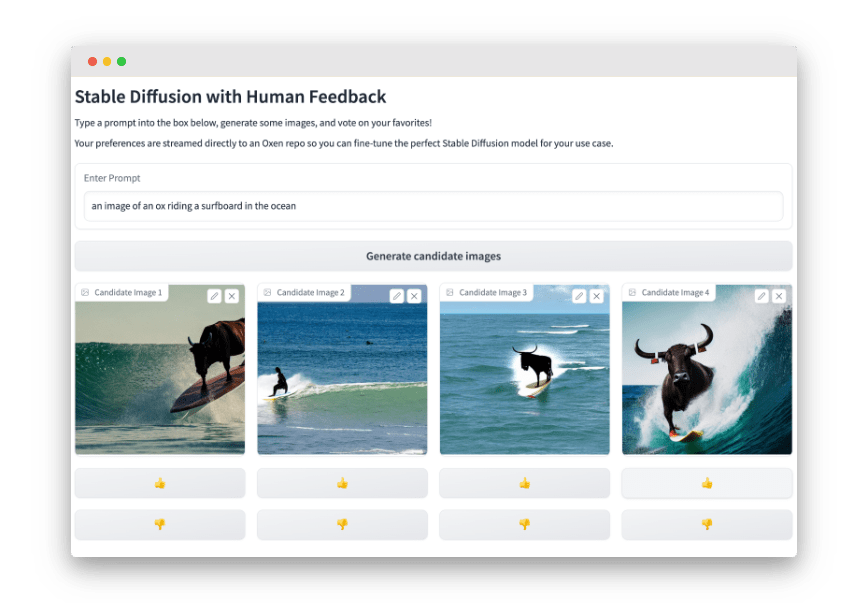

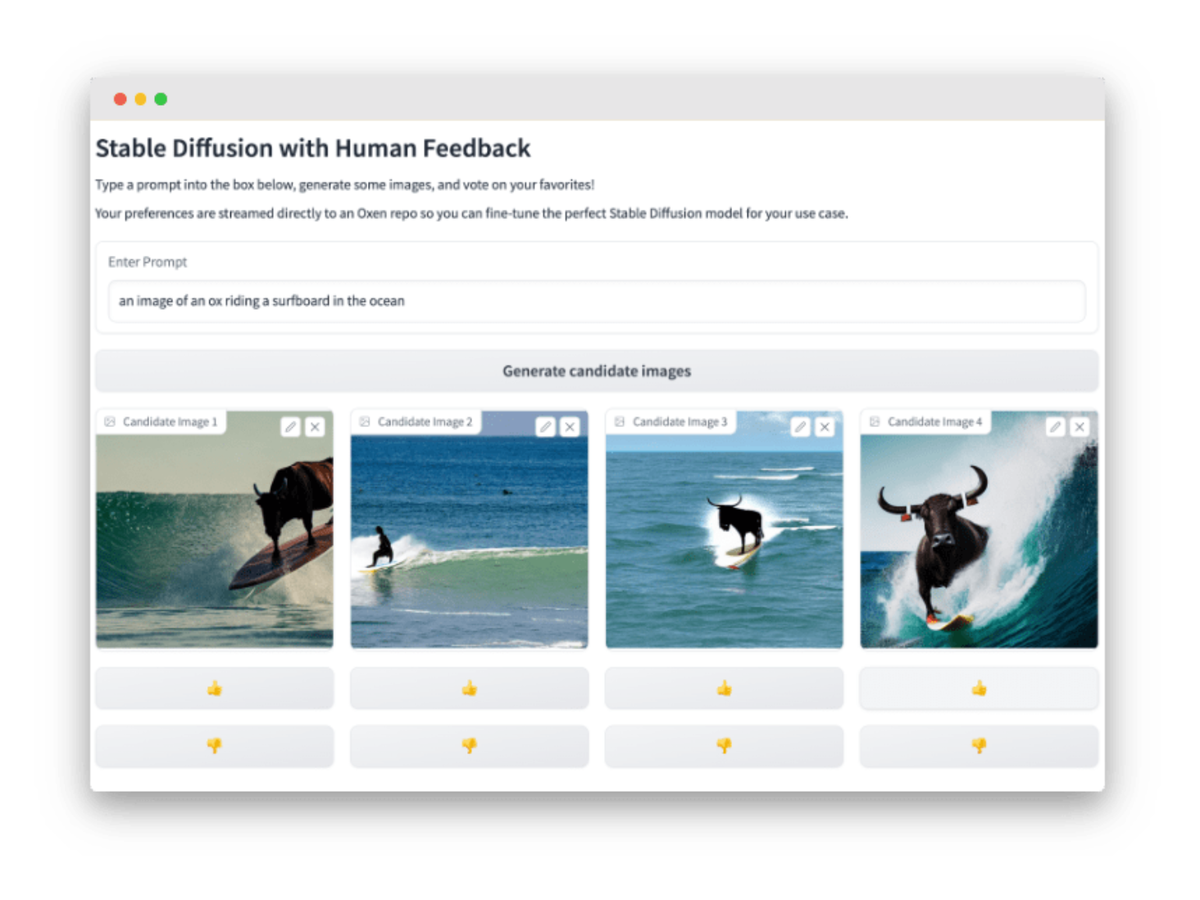

An image of an active learning interface built with gradio, generating 4 images with Stable Diffusion in response to a prompt

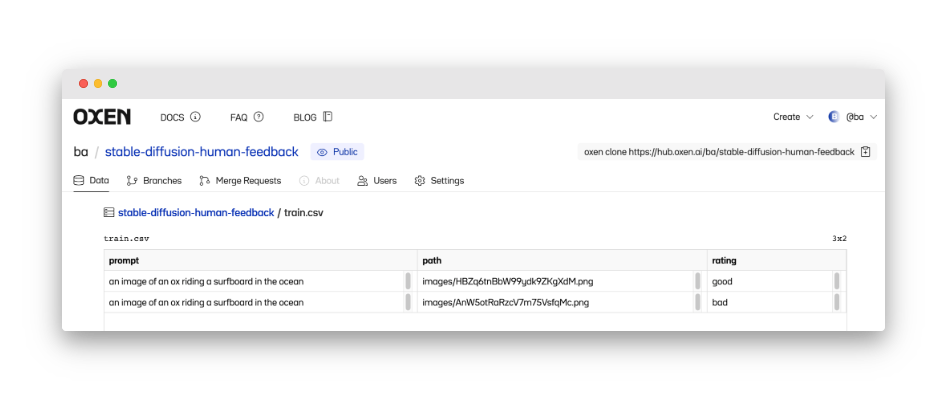

An image of the OxenHub UI, showing the result of up and down votes on these images

At Oxen, we’ve built a data version control system that makes collecting and using this human feedback data easier than ever before. In this tutorial, we’ll build a simple web application to allow seamless collection of preference data in response to images generated by a Stable Diffusion model. We’ll enable users to generate four candidate images based on a user-created prompted, then stream their “votes” on the resulting image candidates to an Oxen repository for later analysis and model fine-tuning.

Let’s dive in! 🏄‍♂️

Tools

Here are the key pieces of software we’ll need to put this puzzle together.

  • oxen for seamless behind-the-scenes data collection and versioning
  • gradio for building a simple data labeling UI solely in Python
  • huggingface + torch for generating our candidate images with Stable Diffusion
  • Lambda labs instance for cost-effective, easy-to-configure GPU compute. We used Lambda's 1xA10 instance for this tutorial, which costs $0.60/hr at time of writing and ran one 4-image inference step in ~30 seconds.

Setting up the UI

We’ll start by laying out the Gradio components needed to evaluate the model, wire them together, and ensure they work on mock data before looping in our Stable Diffusion image generator.

The full code for this tutorial is available here.

import gradio as gr

Due to the number of moving parts in this use case, we’ll need Gradio’s lower-level Blocks API, the documentation for which is found here.

Throughout the steps below, you can start your app in hot-reload mode by running gradio app.py in the terminal.

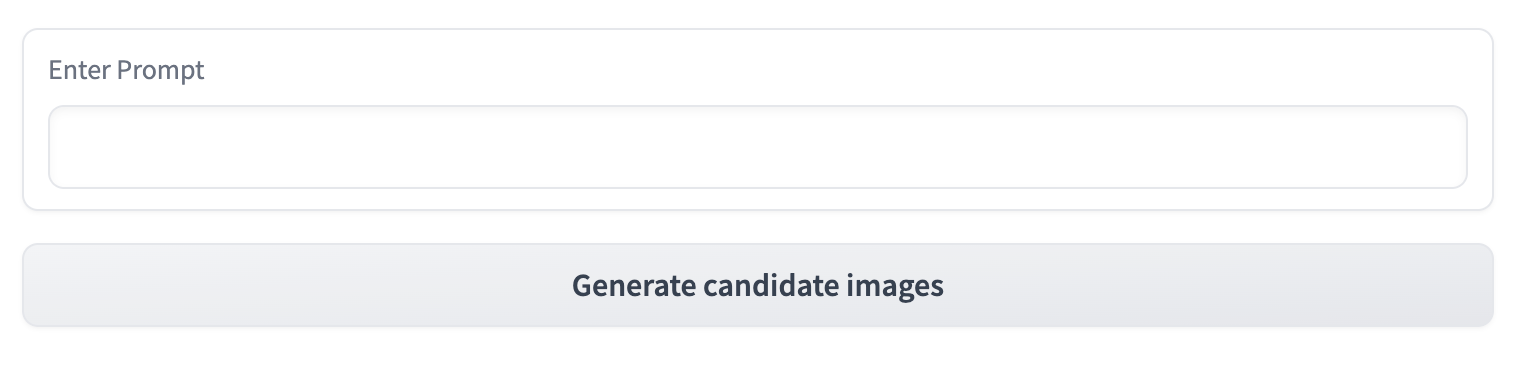

Prompt entry: text box and button

This is where the user will enter their desired prompt, which we’ll later pass to our Stable Diffusion model to condition the image generation process.

with gr.Blocks() as demo:
	prompt = gr.components.Textbox(label="Enter Prompt")
	generate = gr.Button("Generate candidate images")

Image rendering and user voting

We need four image panels, four upvote buttons, and four downvote buttons, which will all be styled and manipulated in the same manner. To avoid repeating ourselves, we can render them iteratively and store them in a dict (or list) as below.

We’ll also contain them in a Row to display them horizontally.

images = {}
upvote_buttons = {}
downvote_buttons = {}
# with gr.Blocks() as demo...
	for i in range(1, 5):
		with gr.Column():
			images[i] = gr.components.Image(label=f"Candidate Image {i}", type="pil").style(full_width=False)
			with gr.Row():
				upvote_buttons[i] = gr.Button(value="👍")
        downvote_buttons[i] = gr.Button(value="👎")

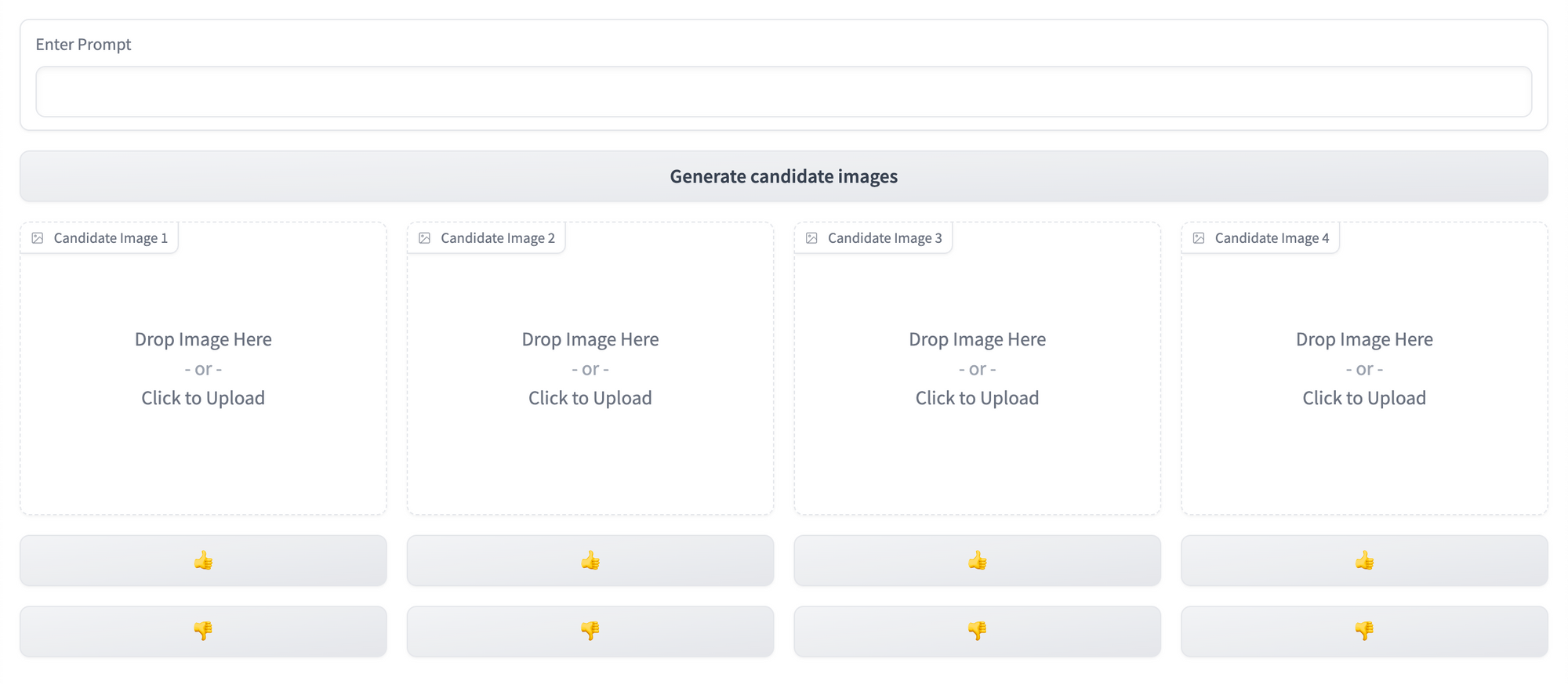

A Gradio UI with a text box, 4 empty blocks, and up/down vote options

We’ve now got our core static interface elements in place—let’s connect the dots and start rendering some mock data!

Adding Interactivity

We need two event handlers: one for rendering our generated images on click, and another for writing to an oxen repo when a user submits an upvote or downvote.

def generate_images(prompt):
	dummy_img = PIL.Image.open("a-dummy-image")
	return [dummy_img]*4

def save_image_to_repo(img_prompt, img, button):
	print(f"Applying {button} rating to image {img} with prompt {img_prompt}")

# Add event handlers
# with gr.Blocks() as demo:
# ...
generate.click(generate_images, inputs=prompt, outputs=list(images.values())

for i in range(len(1,5)):
	upvote_buttons[i].click(save_image_to_repo, inputs=[prompt, images[i], upvote_buttons[i]])
	downvote_buttons[i].click(save_image_to_repo, inputs=[prompt, images[i], downvote_buttons[i]])

For the handler on generate: pass one input, the text prompt, and expect four images as output, passing each one to one of the four gr.components.Image blocks in our layout.

For the upvote_buttons and downvote_buttons, call save_image_to_repo, we're passing in in:

  • prompt - for saving to oxen as training data
  • images[i] - the image that triggered the button click
  • upvote_buttons[i] - the value of the button itself, so we can tell if it was a 👍 or 👎 when saving this data in oxen.

The dummy images now render after clicking the generate button, and the image data is being correctly routed on upvote / downvote.

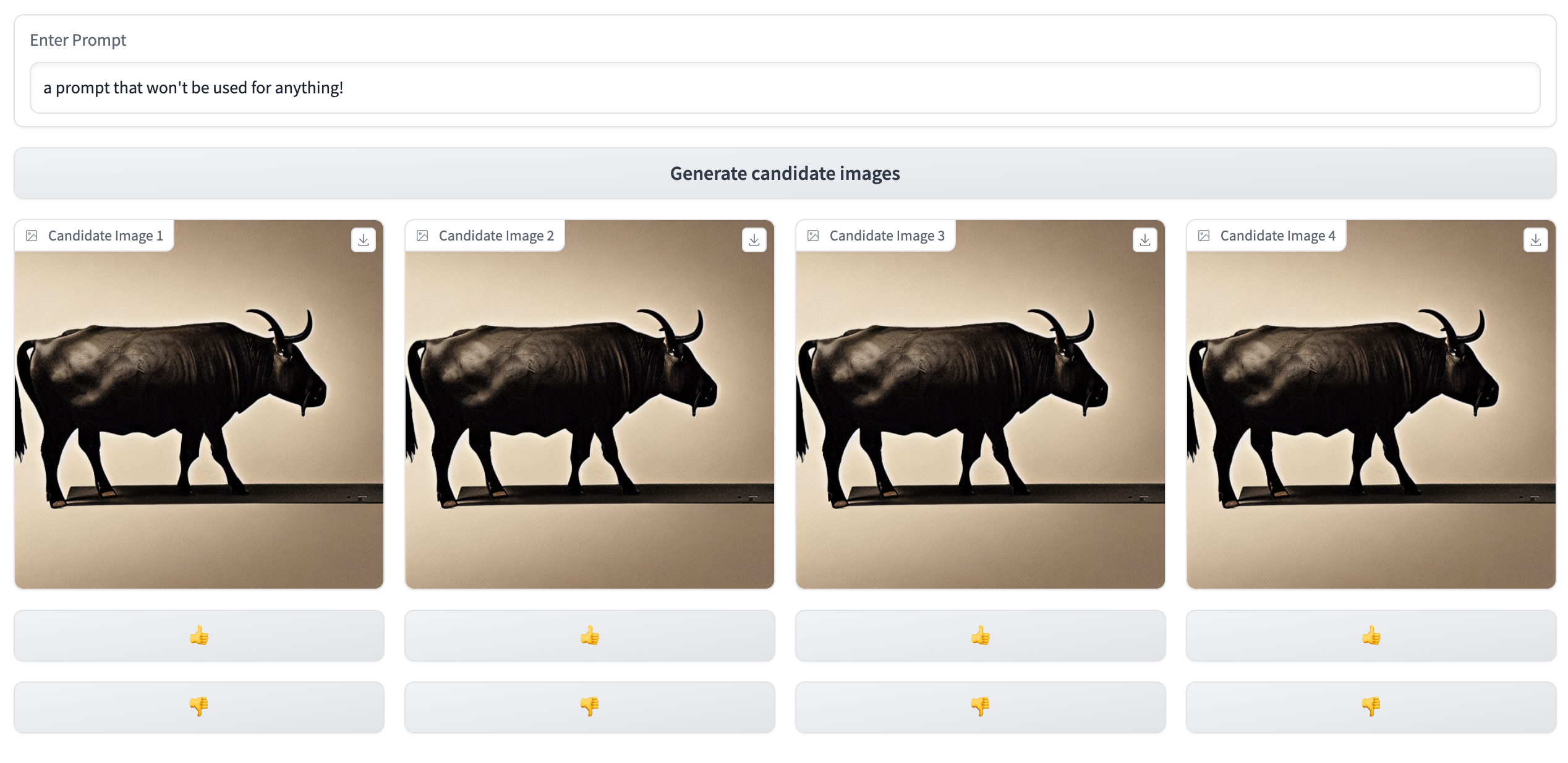

An image of a UI with four identical Ox images and associated up and downvote buttons
Onward to generating some real images!

Generating images with Stable Diffusion

This step requires huggingface’s diffusers and transformers libraries, but is otherwise straightforward. We’ll use the StableDiffusionPipeline class to generate four images from a given prompt, then return them to the UI via our generate_images handler.

from diffusers import StableDiffusionPipeline

# Set up pipeline for use in our generate_images fn
pipe = StableDiffusionPipeline.from_pretrained("CompVis/stable-diffusion-v1-4")

# Use GPU for inference
pipe.to("cuda")

# Update generate_images to run an inference step and return 4 images
def generate_images(prompt):
	images = pipe(prompt, num_images_per_prompt=4).images
  return images

…and that’s all it takes! Test it out by generating an image from any prompt you can think of, noting that this might take some time depending on your machine’s GPU specs. Our Lambda Labs instance (specs listed earlier) took ~30 seconds to generate four images.

You can check its progress through 50 inference steps in the terminal where your gradio app is running.

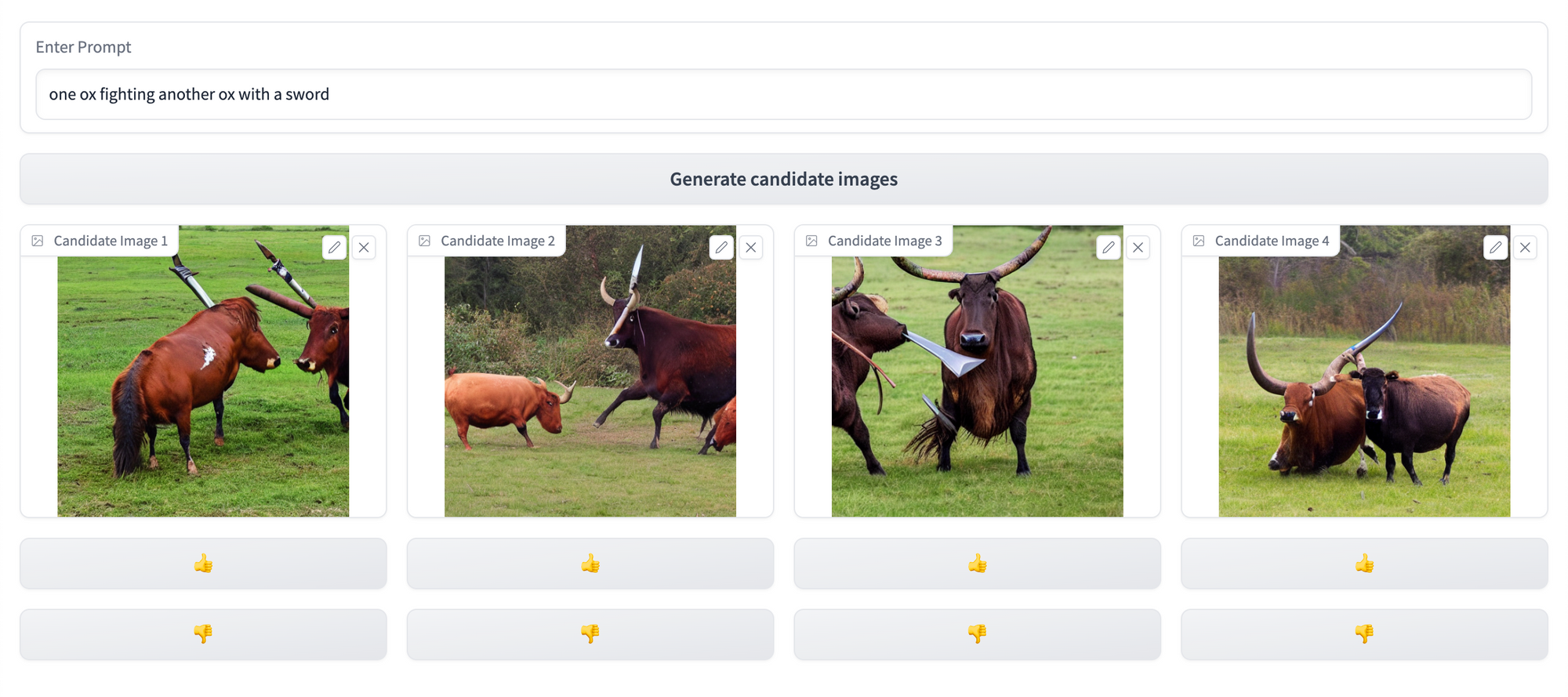

A UI showing generation of four images from a Stable Diffusion model

Collecting human feedback data with Oxen

We’ll start by creating a repo on OxenHub that will store our image data and human ratings, using the following structure:

[repo-name]
	- images
		- 0001.png
		- 0002.png
		- # etc.
	- train.csv

Where train.csv includes columns for the prompt, path to the image, and rating assigned by the user in our gradio app. See an example here.

After creating this repo, we can set up our python script to allow us to remotely make commits to it!

Authenticating with oxen

  1. Create an account at oxen.ai
  2. Create a repo to store your human feedback data:

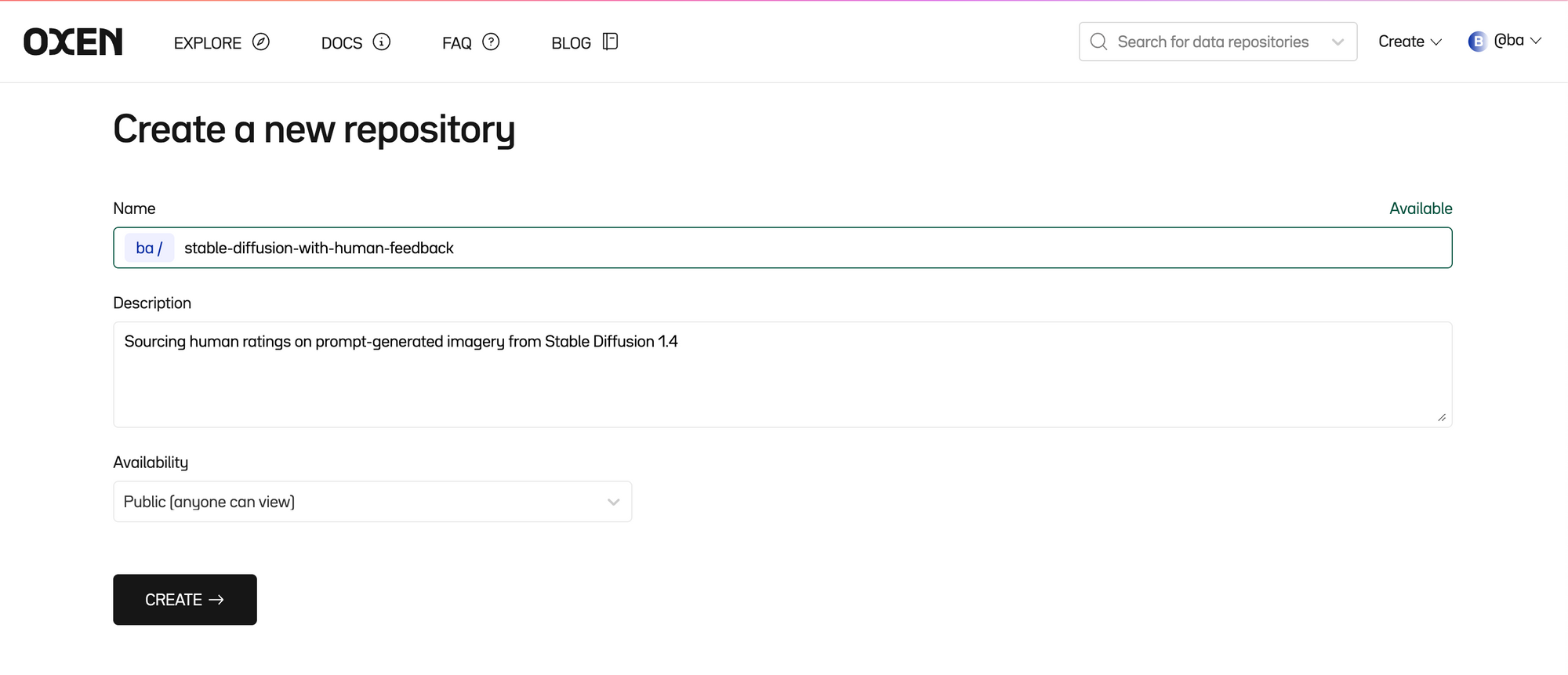

An image showing the creation of an OxenHub repo

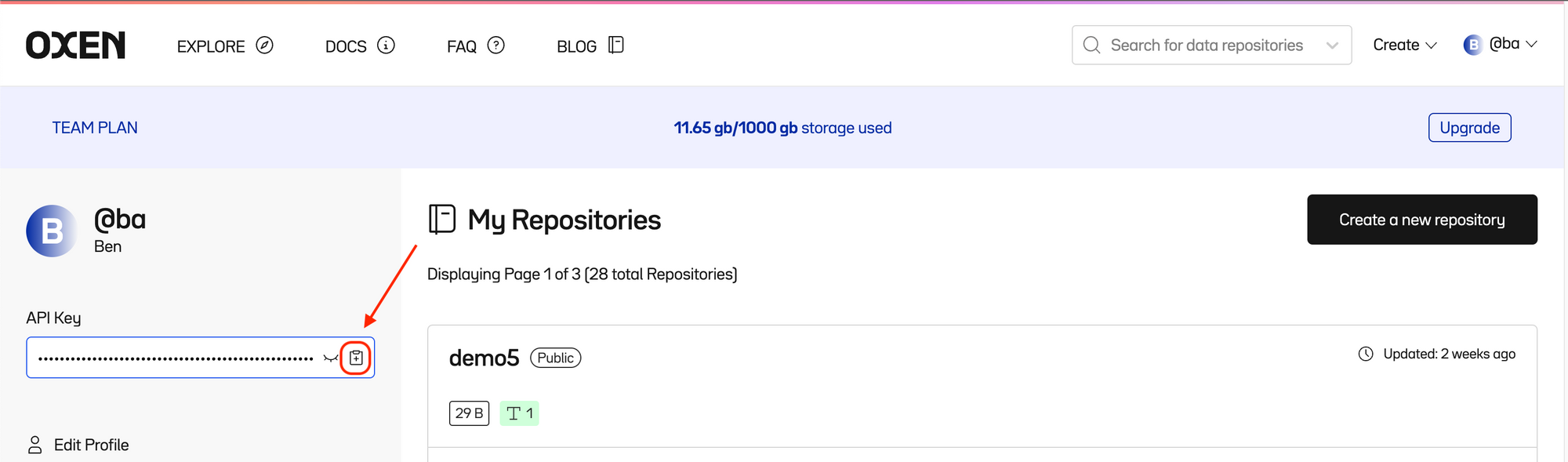

  1. Obtain your Oxen API key from your Profile tab at oxen.ai

An image of the OxenHub UI, showing the result of up and down votes on these images

  1. If it doesn’t already exist, create a .oxen directory in your home directory
  2. Then, in a notebook or interactive python shell, run the following:
# Only needs to be run once - no need to include in app
import oxen
oxen.auth.create_user_config(name="your name", email="your-email@email.you")
oxen.auth.add_host_auth(host="hub.oxen.ai", token=YOUR_TOKEN)

This will enable you to remotely commit from python to any repos where you have push permissions.

Writing to the repo

Configure the RemoteRepo object as as follows for easy contribution without needing to clone the repo locally:

from oxen import RemoteRepo
repo = RemoteRepo("your-namespace/your-repo-name") # ba/stable-diffusion-human-feedback
repo.checkout("branch-name", create=True) # For new branch
IMAGE_FOLDER = "images"

Then adapt the save_image_to_repo handler to remotely add the data to both the images folder and the train.csv dataframe on each button click.

def get_rating(label):
	# Helper to get plaintext rating from clicked button
  if label == '👍':
      return 'good'
  elif label == '👎':
      return 'bad'
  else:
      raise ValueError(f"Unexpected rating label: {label}")

def save_image_to_repo(img_prompt, img, button):
	# Randomize to avoid collisions
	filename = f"{shortuuid.uuid()}.png"
	# Temporarily save image to disk
	img.save(filename)
    # Create new row to be added to df
	row = {"prompt": img_prompt, "path": f"{IMAGE_DEST}/{filename}", "rating": get_rating(button)}

	# Remotely stage files to repo
	try:
    	repo.add(filename, IMAGE_DEST)
    	repo.add_df_row("train.csv",  row)
    	repo.commit(f"Add from RLHF: {img_prompt}")
  	except Exception as e:
		# Unstage changes if any part of add-commit flow was unsuccessful
		repo.remove(filename)
		repo.restore_df("train.csv")
		# Clean up temp file
   	os.remove(filename)

Test it out!

All upvotes and downvotes will be near-instantly added to the images folder and train.csv files in your target repo as individual commits. This facilitates easy, versioned creation of fine-tuning data to help hone your Stable Diffusion model.

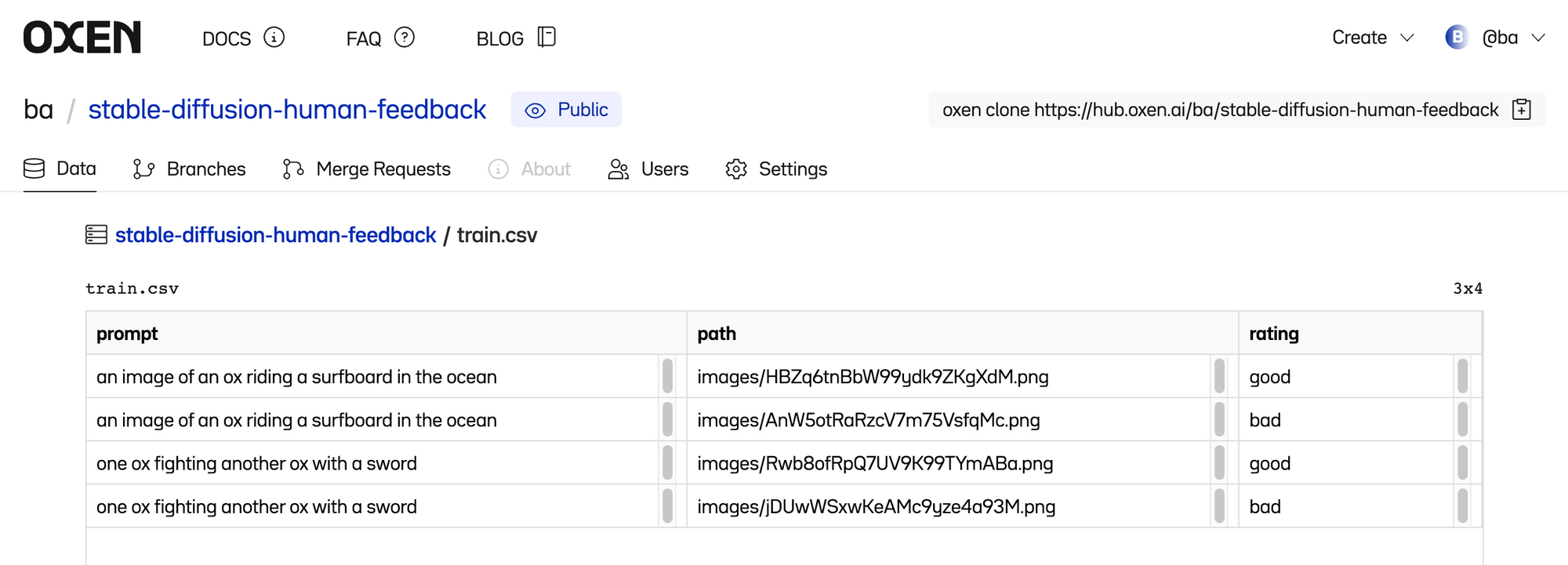

The OxenHub Ui, showing successful streaming of the votes submitted through our Gradio UI

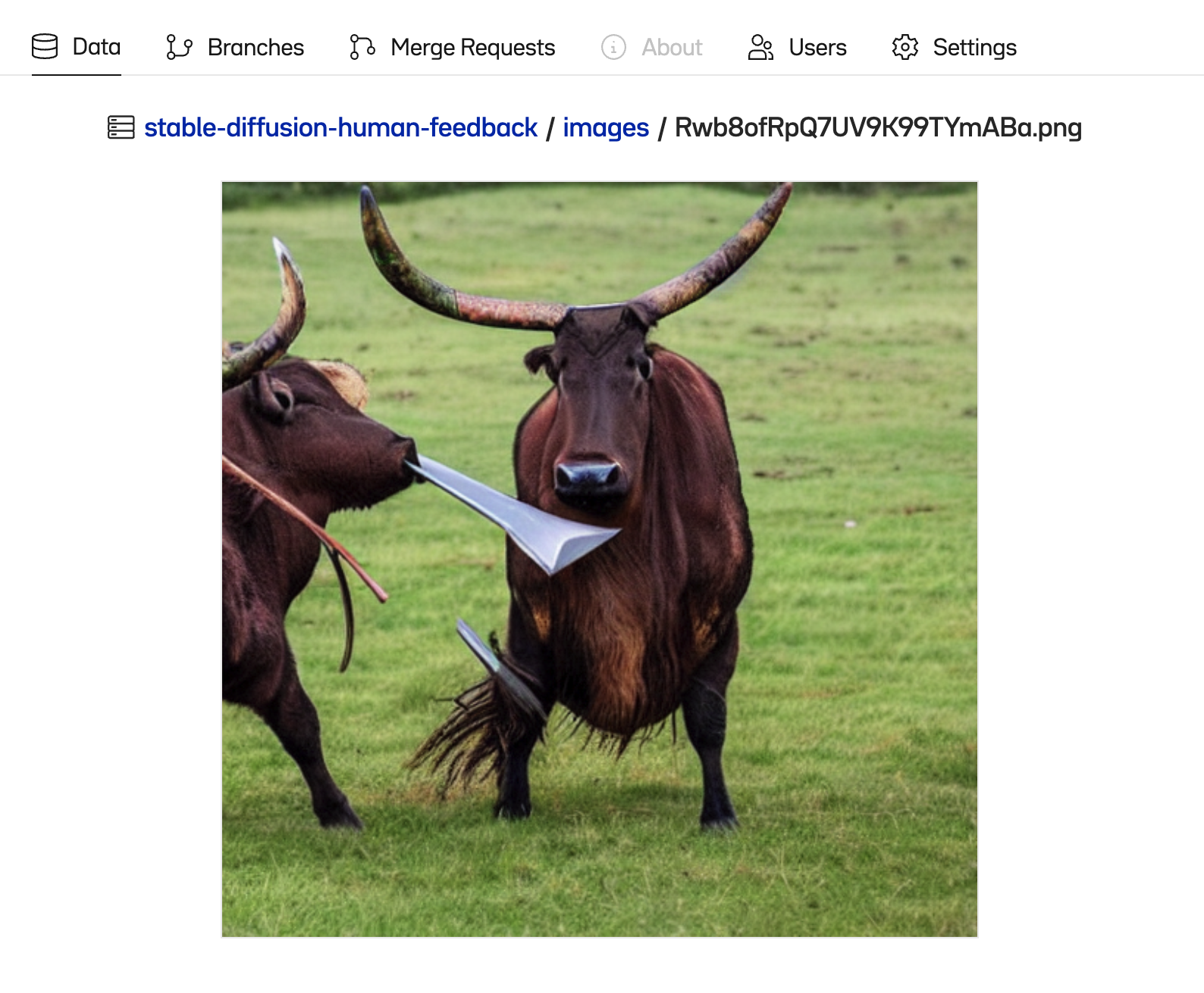

An example image rendered in the OxenHub UI, showing an Ox swinging a sword at another ox

Thanks for reading!
